智能数采卡尺数采量具智能数采量具蓝牙数显量具数采三爪内径千分尺数采外径千分尺智能数采卡尺数采深度尺

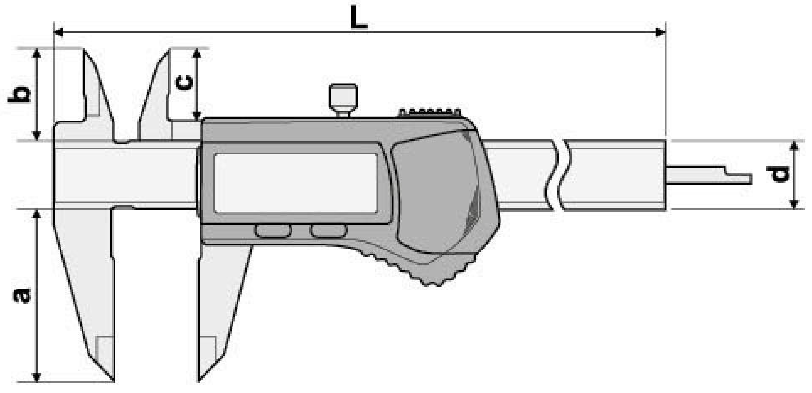

货号 Code NO.	测量范围 Measuring Range	精度 Accuracy	L mm	a mm	b mm	c mm	d mm
B110N-221BT	0-150	±0.03	236	40	21	16.5	16
B110N-222BT	0-200	±0.03	286	50	24	19.5	16
B110N-223BT	0-300	±0.04	400	60	26	21.5	16

货号
Code NO.

测量范围
Measuring Range

精度
Accuracy

L
mm

a
mm

b
mm

c
mm

d
mm

B110N-221BT

0-150

±0.03

236

16.5

B110N-222BT

0-200

±0.03

286

19.5

B110N-223BT

0-300

±0.04

400

21.5

主要特点

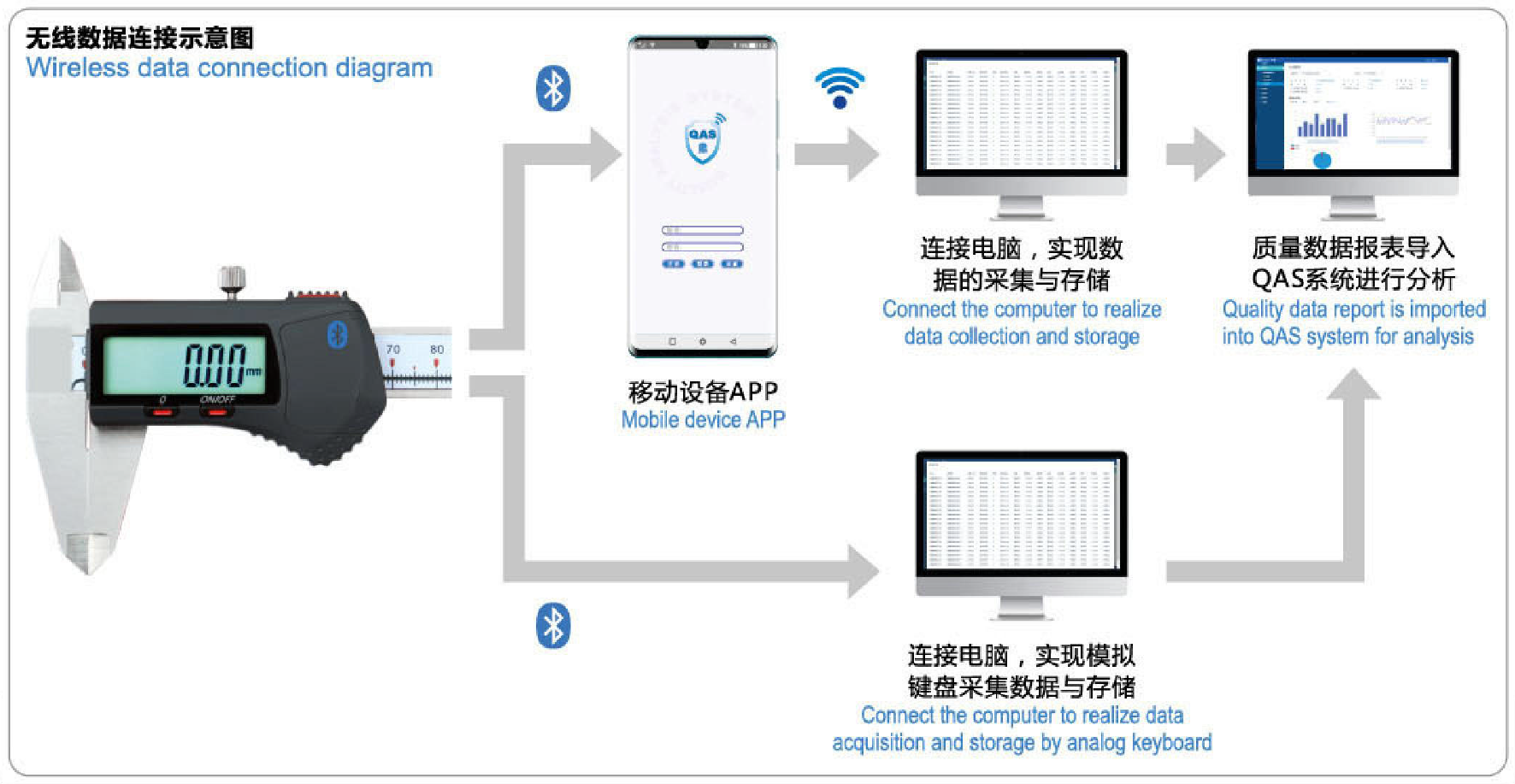

Built-in Bluetooth, measurement data can be transmitted to mobile phones, tablets and computers
Two working modes: simple connection software mode and HID paired keyboard mode
With OTA wireless upgrade function, function customization and upgrade, no need to return to the factory
Provide AAR file intermediate development package, supporting secondary development
Transmission distance ≤10m(open land); ≤7m(industrial environment)
At most 15 calipers can be connected at the same time(the specific number depends on the performance of the client)
Ultra-low power consumption, the experimental test can use the large-capacity IoT battery to continuously and automatically collect data up to 1.5 million times(frequency 4 times/second), and manual collection can be used for 6 months(single shift system 8 hours)
