主要特点

适用于盲孔和通孔的精密测量，配有接长杆可测量深孔尺寸
Ip65防护等级，硬质合金测量面，保证设备持久的稳定性
棘轮测力，内置蓝牙，可把测量数据传输到手机、平板和电脑
两种工作模式：简易连接软件模式和HID配对键盘模式
具备OTA无线升级功能，功能定制升级，无需返厂

FEATURES

Bore depth measuring with a long extend rod
IP65 water-proof function, cemented carbide measuring surface ensures the constant stabilization of the equipment
With ratchet sleeve force, Built-in Bluetooth, measurement data can be transmitted to mobile phones, tablets and computers
Two working modes: simple connection software mode and HID paired keyboard mode
With OTA wireless upgrade function, function customization and upgrade, no need to return to the factory

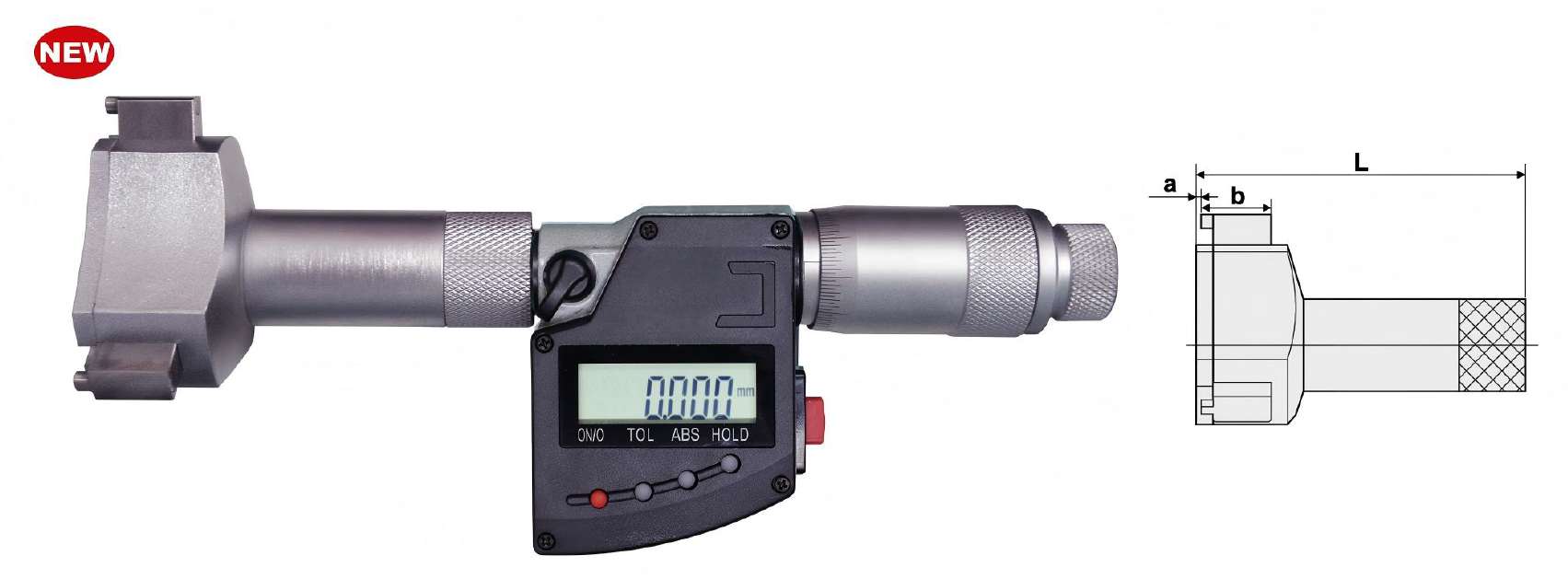

货号 Code No.	测量范围 Measuring Range (mm)	精度 Accuracy (mm)	L (mm)	a (mm)	b (mm)
B221-151-1WT-BT	6-8	±0.004mm	42mm	1	2.5
B221-151-2WT-BT	8-10	±0.004mm	42mm	1	2.5
B221-151-3WT-BT	10-12	±0.004mm	42mm	1	2.5
B221-154-1WT-BT	11-14	±0.004mm	42mm	0.5	6
B221-154-2WT-BT	14-17	±0.004mm	42mm	0.5	6
B221-154-3WT-BT	17-20	±0.004mm	42mm	0.5	6
B221-157-1WT-BT	20-25	±0.004mm	50mm	0.5	9
B221-157-2WT-BT	25-30	±0.004mm	50mm	0.5	9
B221-157-3WT-BT	30-35	±0.004mm	50mm	0.5	9
B221-157-4WT-BT	35-40	±0.004mm	50mm	0.5	9
B221-161-1WT-BT	40-50	±0.005mm	75mm	0.5	15
B221-161-2WT-BT	50-60	±0.005mm	75mm	0.5	15
B221-161-3WT-BT	60-70	±0.005mm	75mm	0.5	15
B221-161-4WT-BT	70-80	±0.005mm	75mm	0.5	15
B221-161-5WT-BT	80-90	±0.005mm	75mm	0.5	15
B221-161-6WT-BT	90-100	±0.005mm	75mm	0.5	15
B221-171-1WM-BT	100-125	±0.006mm	140mm	1	20
B221-171-2WM-BT	125-150	±0.006mm	140mm	1	20
B221-171-3WM-BT	150-175	±0.007mm	140mm	1	20
B221-171-4WM-BT	175-200	±0.007mm	140mm	1	20
B221-171-5WM-BT	200-225	±0.008mm	140mm	1	20
B221-171-6WM-BT	225-250	±0.008mm	140mm	1	20
B221-171-7WM-BT	250-275	±0.008mm	140mm	1	20
B221-171-8WM-BT	275-300	±0.008mm	140mm	1	20
B221-171-9WM-BT	300-325	±0.012mm	140mm	1	20
B221-171-10WM-BT	325-350	±0.012mm	140mm	1	20
B221-151A-1WT-BT	6-8	±0.004mm	42mm	1	2.5
B221-151A-2WT-BT	8-10	±0.004mm	42mm	1	2.5
B221-151A-3WT-BT	10-12	±0.004mm	42mm	1	2.5
B221-154A-1WT-BT	12-16	±0.004mm	42mm	0.5	6
B221-154A-2WT-BT	16-20	±0.004mm	42mm	0.5	6
B221-157A-1WT-BT	20-25	±0.004mm	50mm	0.5	9
B221-157A-2WT-BT	25-30	±0.004mm	50mm	0.5	9
B221-157A-3WT-BT	30-40	±0.004mm	61mm	0.5	13
B221-161A-0WT-BT	40-50	±0.004mm	61mm	0.5	13
B221-161A-1WT-BT	50-63	±0.005mm	75mm	0.5	17
B221-161A-2WT-BT	62-75	±0.005mm	75mm	0.5	17
B221-161A-3WT-BT	75-88	±0.005mm	75mm	0.5	17
B221-161A-4WT-BT	87-100	±0.005mm	75mm	0.5	17
B221-171-1W-BT	100-125	±0.006mm	140mm	17	18.5
B221-171-2W-BT	125-150	±0.006mm	140mm	17	18.5
B221-171-3W-BT	150-175	±0.007mm	140mm	17	18.5
B221-171-4W-BT	175-200	±0.007mm	140mm	17	18.5
B221-171-5W-BT	200-225	±0.008mm	140mm	17	18.5
B221-171-6W-BT	225-250	±0.008mm	140mm	17	18.5
B221-171-7W-BT	250-275	±0.008mm	140mm	17	18.5
B221-171-8W-BT	275-300	±0.008mm	140mm	17	18.5
B221-171-9W-BT	300-325	±0.012mm	140mm	17	18.5
B221-171-10W-BT	325-350	±0.012mm	140mm	17	18.5
