接杆式两点内径千分尺

Micrometer with Extension Rod

GB/T

S/STL
hardened

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

主要特点

通过连接延长管和带有微分头的测头可扩大测量范围

FEATURES

It can extend measuring range by fitting extension rod and measuring anvil with micrometer head

智能数采型 (Smart Data Acquisition Type)

货号 Code NO.	测量范围 Measuring Range (mm)	分辩力 Resolution (mm)	精度 Accuracy (mm)	延长杆(Extension rod) L (mm)
B221-131BT-225	200-225	0.001	±0.008
B221-131BT-300	200-300	0.001	±0.009	25 50
B221-131BT-400	200-400	0.001	±0.011	25 50 100
B221-131BT-500	200-500	0.001	±0.013	25 50 100x2
B221-131BT-600	200-600	0.001	±0.016	25 50 100 200
B221-131BT-700	200-700	0.001	±0.016	25 50 100x2 200
B221-131BT-800	200-800	0.001	±0.022	25 50 100 200x2
B221-131BT-900	200-900	0.001	±0.022	25 50 100x2 200x2
B221-131BT-1000	200-1000	0.001	±0.022	25 50 100 200x3

机械型 (Mechanical Type)

货号 Code NO.	测量范围 Measuring Range (mm)	分度值 Graduation (mm)	精度 Accuracy (mm)	测头行程 Travel of measuring tips (mm)	延长杆(Extension rod) L (mm)
B271-101LT	50-63	0.01	±0.005	13	13
B271-102LT	50-75	0.01	±0.005	13	13 25
B271-103LT	50-100	0.01	±0.005	13	13 25 50
B271-104LT	50-150	0.01	±0.006	13	13 25 50
B271-105LT	50-250	0.01	±0.008	13	13 25 50 100
B271-106LT	50-400	0.01	±0.011	13	13 25 50 100 150
B271-107LT	50-500	0.01	±0.013	13	13 25 50x2 100 200
B271-108LT	50-600	0.01	±0.016	13	13 25 50 100 150 200
B271-109LT	50-900	0.01	±0.022	13	13 25 50 100x2 150 200x2
B271-110LT	50-1000	0.01	±0.022	13	13 25 50 100x3 150 200x2

测微头

Micrometer Head

GB/T

S/STL
hardened

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

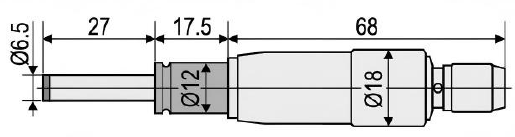

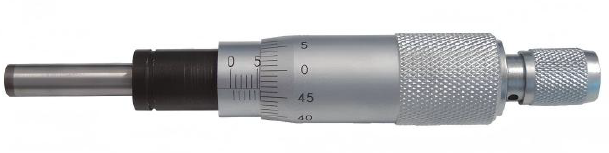

B291-101A

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

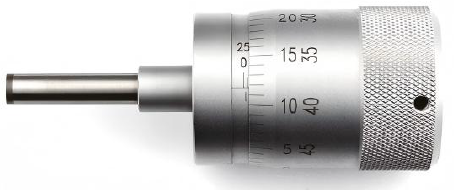

B291-101B

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

测微头接杆式两点内径千分尺智能数采内径千分尺智能数采外径千分尺智能数采深度尺数采量具智能数采量具蓝牙数显量具智能数采三爪内径千分尺智能数采卡尺

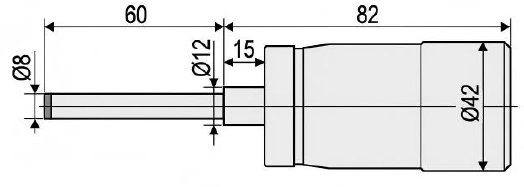

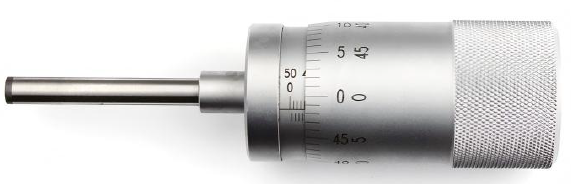

B291-102B

主要特点：

纵横刻线，方便读数，大直径套管，提供高精度测量
硬质合金测量面，保证设备持久的稳定性
内置式限力装置，确保精确的重复读数

FEATURES

Graduation in two directions for easy reading, and big graduation for precise measurement
Cemented carbide measuring surface ensures the constant stabilization of the equipment
Built-in force limiting device ensures accuracy of repeat reading

产品参数表

货号 Code NO.	测量范围 Measuring Range (mm)	分度值 Graduation (mm)	精度 Accuracy (mm)
B291-101A	0-25	0.01	±0.004
B291-101B	0-25	0.01	±0.004
B291-102B	0-50	0.01	±0.004

观看产品在移动端<智能数采系统app>演示视频
