主要特点

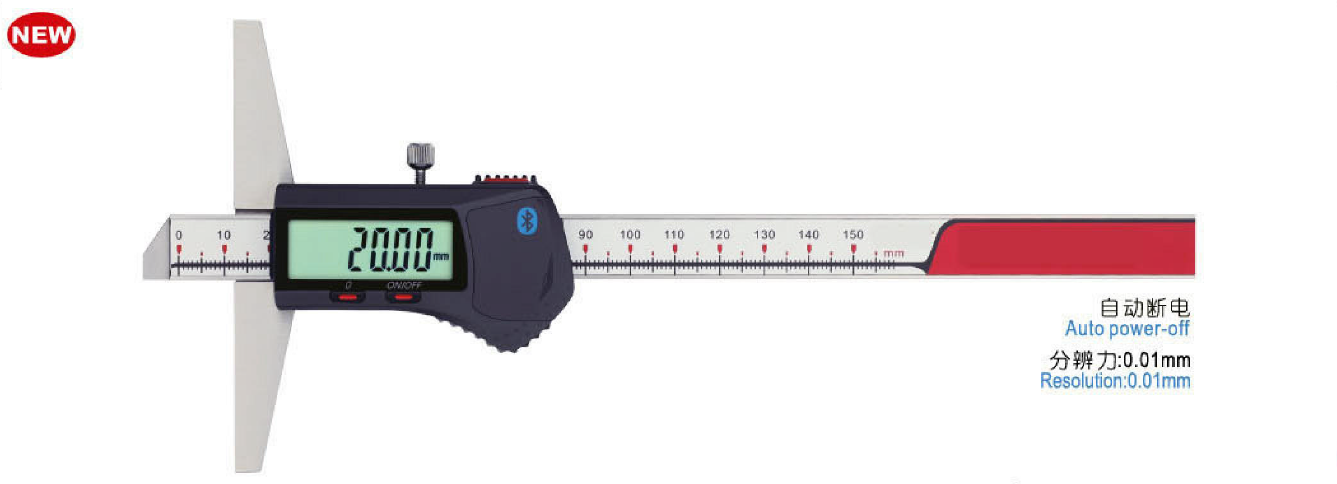

Used for depth and step measurements

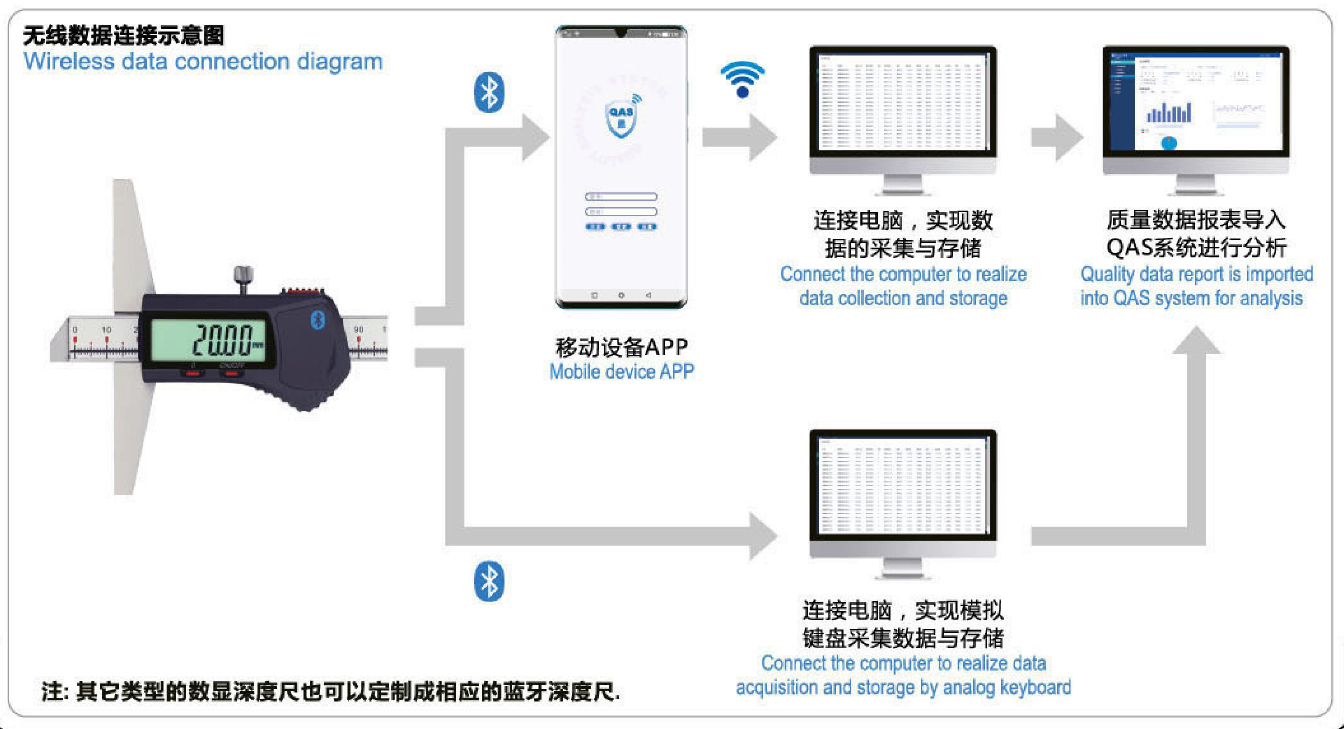

Built-in Bluetooth, measurement data can be transmitted to mobile phones, tablets and computers
Two working modes: simple connection software mode and HID paired keyboard mode
With OTA wireless upgrade function, function customization and upgrade, no need to return to the factory
Transmission distance ≤20m(open land); ≤10m(industrial environment)

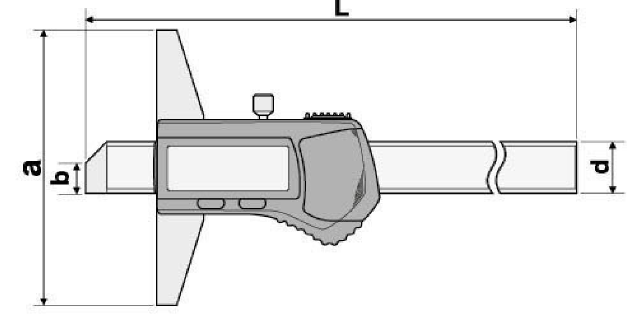

货号 Code No.	测量范围 Measuring Range mm	精度 Accuracy mm	L mm	a mm	b mm	c mm	d mm
B121-201BT	0-150	±0.03	235	100	6	-	14.5
B121-202BT	0-200	±0.03	285	100	6	-	14.5
B121-204BT	0-300	±0.04	385	100	6	-	14.5
B123-201BT	0-150	±0.03	235	100	5	2	14.5
B123-202BT	0-200	±0.03	285	100	5	2	14.5
B123-203BT	0-300	±0.04	385	100	5	2	14.5
